HAISEN · CNC TURNING CENTERS
Explore our flat-bed and slant-bed CNC turning centers with gang-tool and turret configurations.
Compare machining capacities, tooling arrangements and automation options to specify the turning center for your production requirements.
PRODUCT RANGE
Browse turning center models by machine structure and tooling configuration. Compare machining capacity, spindle specifications and equipment options across the range.
Representative configuration

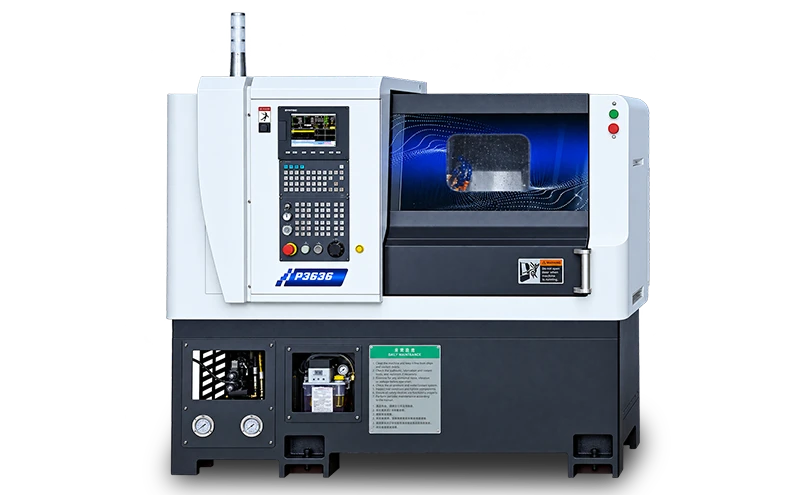

Flat-bed and slant-bed models with gang-tool configurations for successive machining operations.

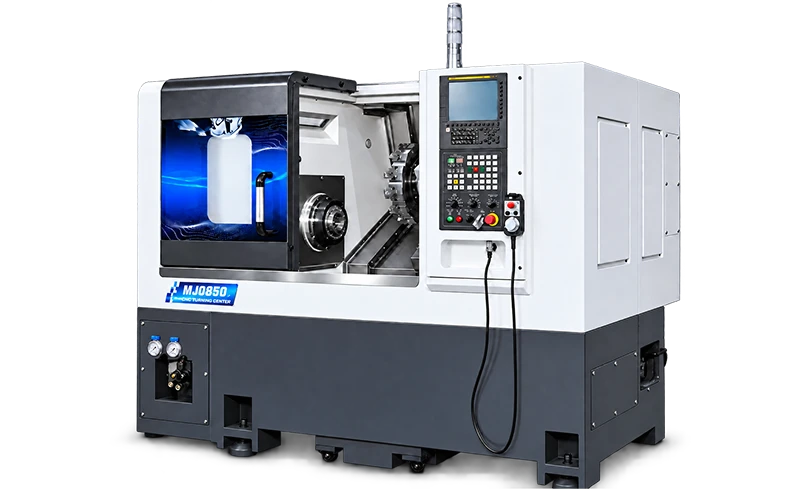

Representative configuration
Slant-bed models with servo-turret tooling and different machining capacities.
Representative configuration

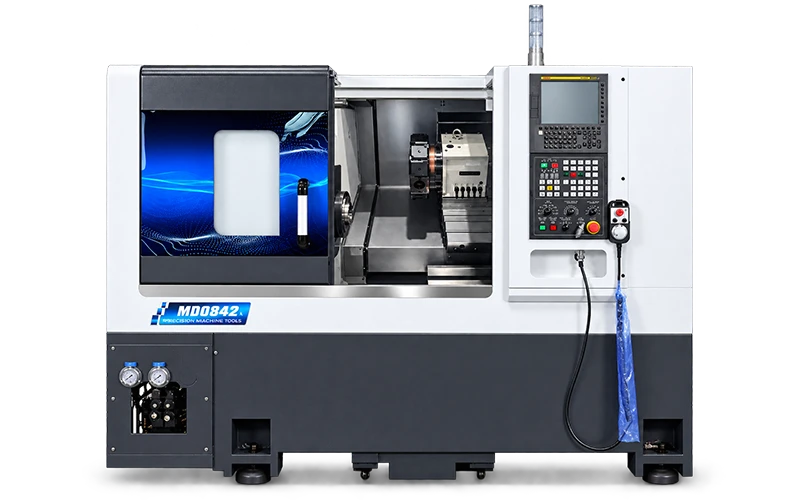

Models with powered tooling and model-specific Y-axis configurations for additional machining operations.
Representative configuration

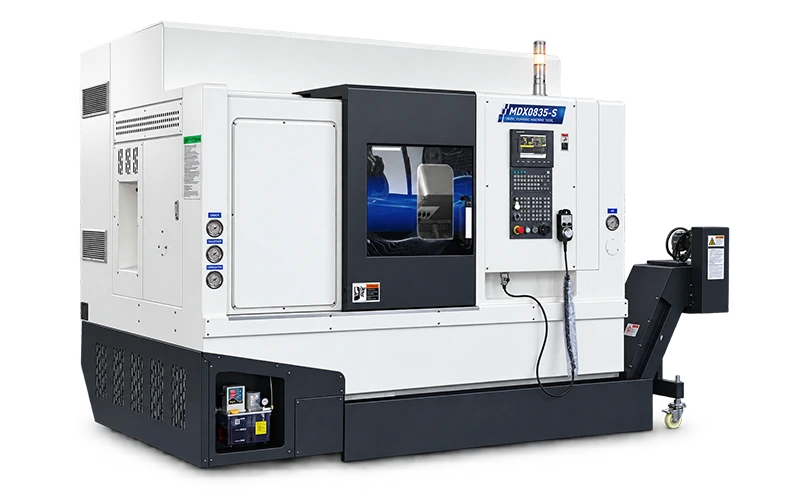

Model-specific spindle and tooling arrangements for production involving more than one spindle.
Tooling, workholding, spindle arrangements and automation equipment depend on the selected model and configuration.
MODEL COMPARISON
Compare CNC turning center models by machining capacity, spindle performance and tooling configuration. Review the dimensions and equipment relevant to your workpieces and production process.
| Model / Configuration | Max. Turning Diametermm | Max. Turning Lengthmm | Spindle Boremm | Max. Bar Capacitymm | Max. Spindle Speedrpm | Full Details |
|---|---|---|---|---|---|---|
| T3638Flat-bed gang tools | 100 | 380 | 48 | 34 | 6,000 | |
| T4632Flat-bed gang tools | 260 | 320 | 56 | 44 | 5,000 | |
| ST3630-ESlant-bed gang tools | 100 | 300 | 48 | 34 | 3,500 | |
| ST3630Slant-bed gang tools | 160 | 280 | 48 | 34 | 5,000 | |
| ST4640Slant-bed gang tools | 320 | 400 | 56 | 44 | 5,000 | |
| HTC0630Slant-bed servo turret | 320 | 300 | 56 | 44 | 5,000 | |
| HTC0650Slant-bed servo turret | 320 | 500 | 56 | 44 | 5,000 | |
| HTC0830Slant-bed servo turret | 320 | 300 | 66 | 50 | 4,000 | |
| HTC0850Slant-bed servo turret | 320 | 500 | 66 | 50 | 4,000 | |
| HTC0850ESlant-bed servo turret | 320 | 500 | 66 | 50 | 3,000 | |
| ST4620Double spindle / double gang tools | 160 | 120 | 56/56 | 44/44 | 5000/5000 | |
| HTD0642Slant-bed power turret | 320 | 420 | 56 | 44 | 5,000 | |
| HTD0842Slant-bed power turret | 320 | 420 | 66 | 50 | 4,000 | |
| HTD0850Slant-bed power turret | 360 | 500 | 66 | 50 | 4,000 | |
| HTY4630Power turret with Y-axis | 320 | 300 | 56 | 44 | 5,000 | |
| HTY0625Power turret with Y-axis | 320 | 250 | 56 | 44 | 5,000 | |
| HTY0642Power turret with Y-axis | 320 | 420 | 56 | 44 | 5,000 | |
| HTY0842Power turret with Y-axis | 320 | 420 | 66 | 50 | 4,000 | |
| HTY0840Interpolation Y | 320 | 400 | 66 | 50 | 4,000 | |
| HSTY0835Interpolation Y / paired spindles | 400 | 350 | 66/56 | 50/44 | 4000/5000 | |
| HSTY0850H-SInterpolation Y / paired spindles | 400 | 500 | 66/56 | 50/44 | 4000/5000 | |
| HSTY0820Interpolation Y / paired spindles | 220 | 200 | 66/56 | 50/44 | 4000/5000 |
Reading the table: Slash-separated values describe the two spindles on twin-spindle models. Spindle bore and bar capacity are different specifications. Open a model for tooling, Y-axis, chuck and motor details.
Equipment and functions vary by model. Confirm the final machine configuration and machining capacity in your quotation.
MACHINE DETAILS
Review the machine structures, tooling systems and workholding arrangements in our turning center range. Combine the model specification with the equipment needed for your machining process.

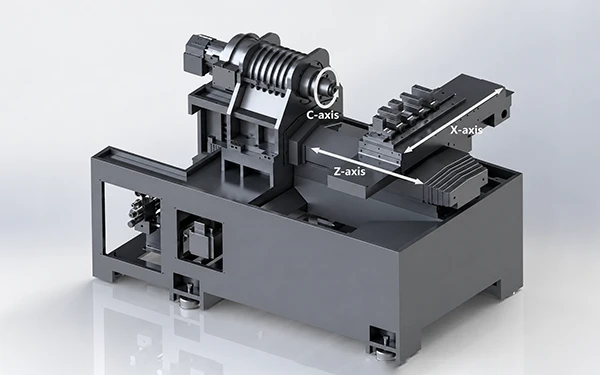

A horizontal bed layout forms the basis of our flat-bed turning center models. Compare its working space and tooling arrangement against your machining process.
Horizontal Bed Layout

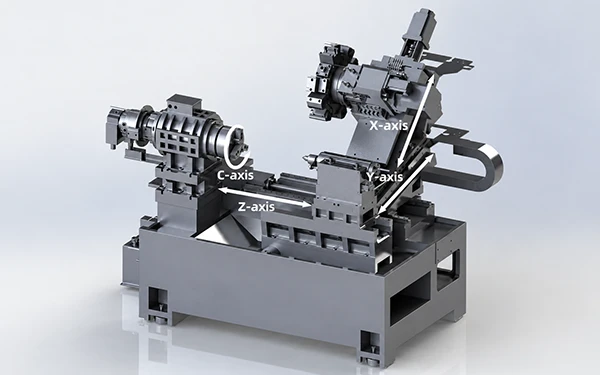

Slant-bed models use an inclined machine layout with model-specific tooling and support arrangements. Review the structure alongside the machining envelope.
Inclined Bed Layout

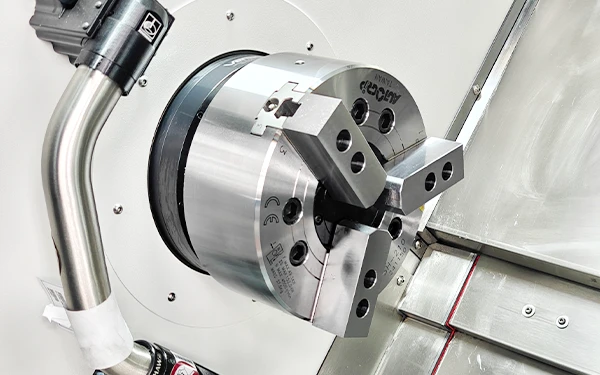

Match the chuck and clamping arrangement to your workpiece dimensions and machining process. Review chuck capacity separately from spindle bore.
Workpiece Clamping

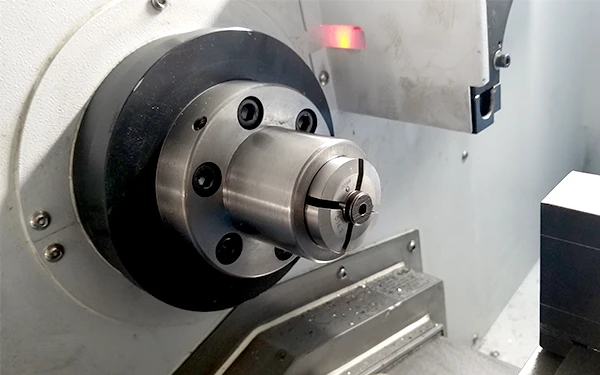

Collet workholding provides an alternative clamping arrangement on selected configurations. Check the clamping dimensions and spindle compatibility for your workpiece.
Workholding Options

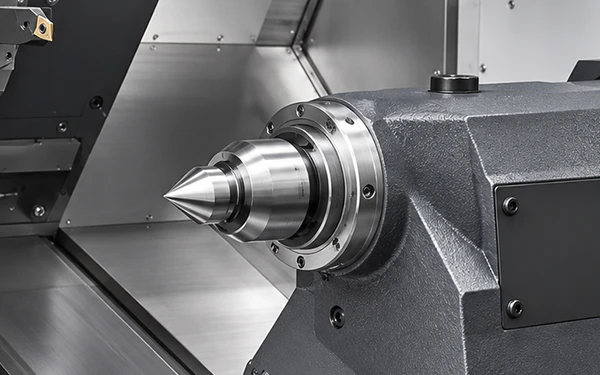

Tailstock configurations support workpieces that require additional support during turning. Check tailstock availability and travel for the selected machine.
Workpiece Support

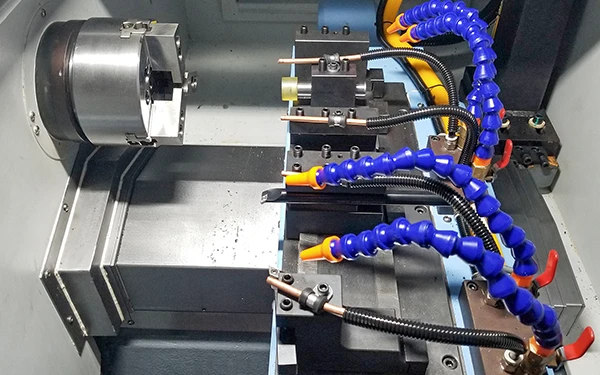

Gang-tool models arrange several tools on the slide. Tool positions and available working space are checked against the required machining sequence.
Tooling Layout

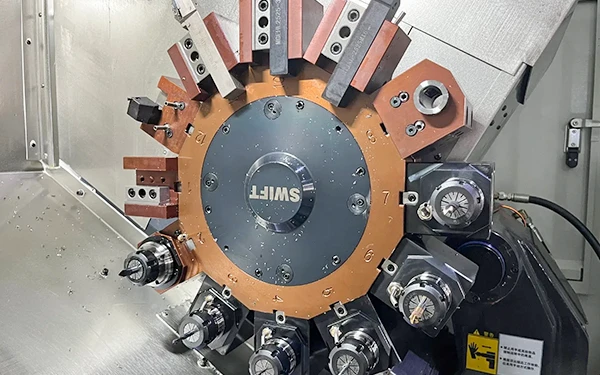

Power-turret configurations accommodate driven tooling on compatible models. Tool stations, available functions and control requirements are specified for the chosen machine.
Driven Tooling

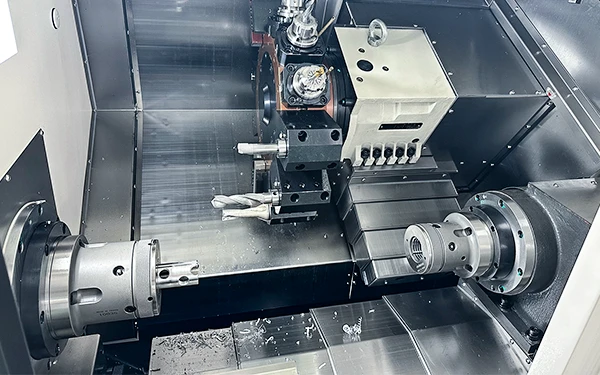

Dual-spindle models use a different spindle and tooling layout from single-spindle machines. Confirm the operating sequence and workholding for the specific model.
Model-Specific LayoutThe illustrations show different configurations across the range. They do not represent standard equipment on every model.
CNC CONTROL & CONFIGURATION
Select your preferred CNC control and identify the functions needed for your machining process. Control options, tooling interfaces and automation compatibility are confirmed for the selected model.
Select a CNC control to include it in your quotation request.
ABOUT HAISEN

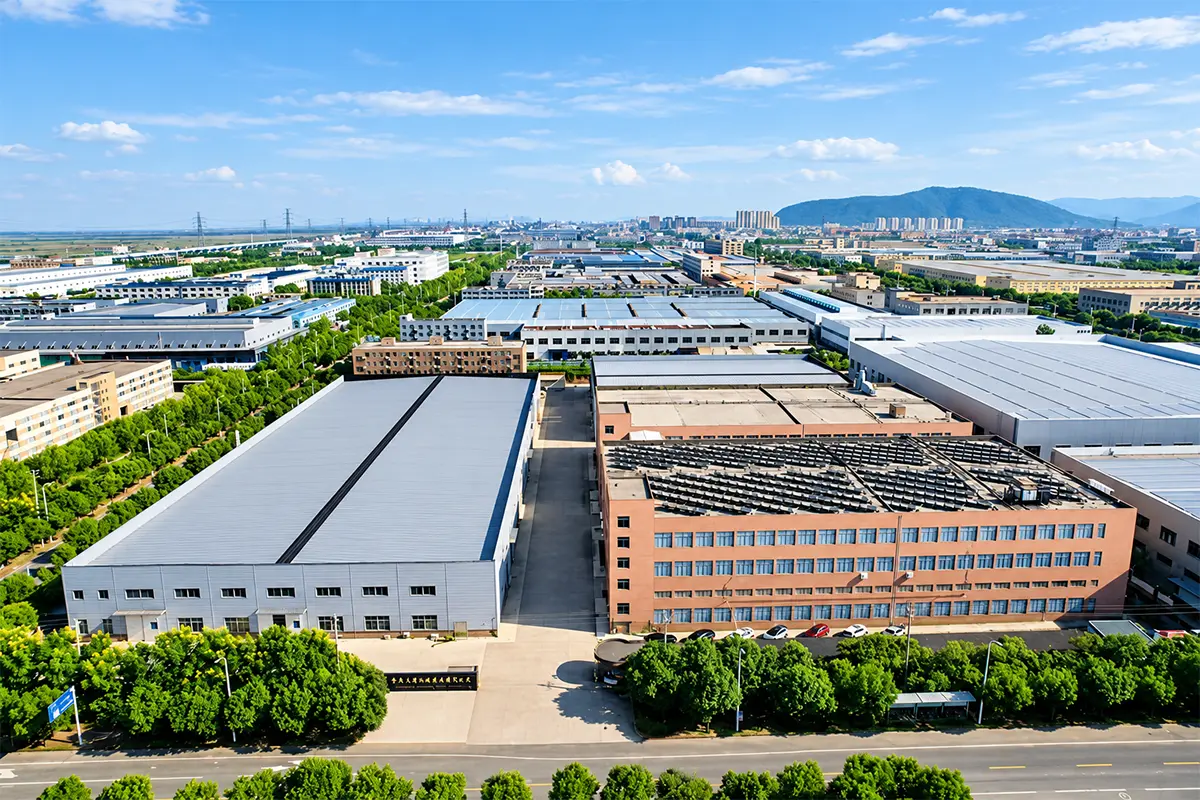

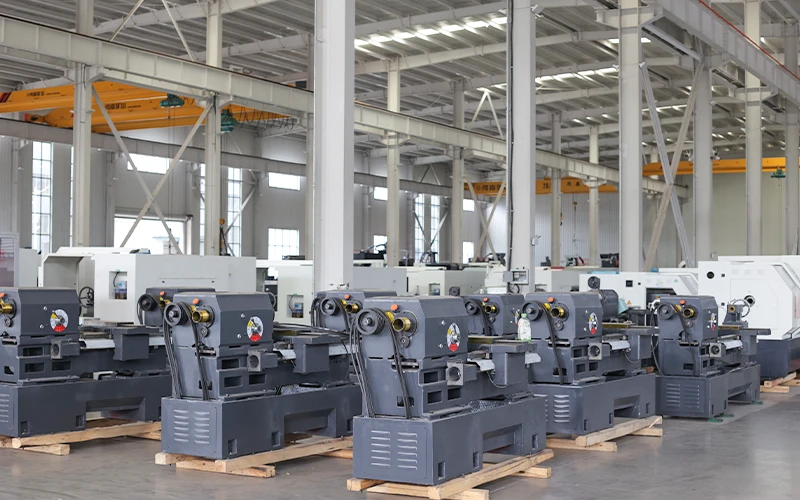

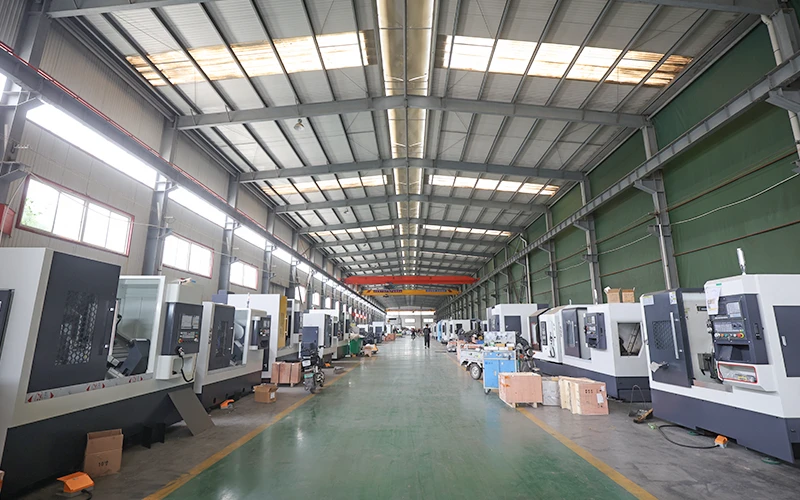

HAISEN manufactures and supplies CNC machine tools, including a broad range of turning centers for industrial production. Our five specialized production bases cover more than 60,000 m², supported by a team of over 100 engineers.
We apply strict quality control to support reliable machine performance and consistent product quality. Our equipment has been supplied to more than 80 countries, and we have established partnerships with over 1,000 enterprises, bringing extensive machine tool manufacturing and international supply experience to our customers.
BUYING INFORMATION
Practical information for comparing machines, tooling arrangements and production configurations.
Start with your workpiece dimensions, material, machining operations and production quantity. Compare maximum turning diameter and length, spindle specifications, workholding and the tooling arrangement. A drawing and process description help identify a suitable model and the equipment it requires.
Gang-tool models carry several tools on a slide and position them through axis movement. Turret models index between tool stations. The suitable arrangement depends on the number of tools, workpiece clearances and machining sequence. Compare the actual tool layout of the models under consideration.
Live tooling and Y-axis capabilities are available on selected models. The range includes power-turret machines and different Y-axis configurations. Identify the operations you need, then confirm the tooling, axis arrangement and control functions of the specific machine.
Review both spindle specifications, chuck arrangements and tooling layout. Paired spindle values describe the two spindles and should be considered separately. Discuss the required machining sequence and part-handling process to confirm how the selected model will be configured.
Spindle bore describes the opening through the spindle. Usable bar capacity can also depend on the drawtube, chuck or collet arrangement and feeding equipment. Use the model's bar-capacity specification when planning bar-fed production.
The range includes bar-feeder, automatic part-receiver, gantry and robot handling options. Compatibility depends on the model, workholding, part geometry and production layout. Include workpiece dimensions, weight and the required operating sequence when discussing automation.
Control options across the range include FANUC, SIEMENS and SYNTEC. Availability depends on the machine and its configuration. Specify the control functions, interface language and automation interfaces needed so the complete arrangement can be confirmed.
Send a drawing or workpiece dimensions, material, required operations and production quantity. Include your preferred model, CNC control, tooling and automation requirements, together with the delivery destination. State any inspection or acceptance requirements for the quotation.
REQUEST A QUOTATION
Send your preferred model or workpiece details. Include the machining operations, tooling requirements and automation plans for a quotation based on your production needs.
