FLAT-BED CNC LATHE
CK6150
- Swing over bed
- 500 mm
- Length options
- 1,000–3,000 mm
- Spindle bore
- 82 mm
HAISEN · CK SERIES
Explore flat-bed CNC lathes in a choice of machine sizes, length specifications and configurations. Find the capacity and equipment for your production requirements.
PRODUCT RANGE
Browse featured flat-bed lathe machine models below, then compare the full CK range by machine size, length options and capacity.
FLAT-BED CNC LATHE
FLAT-BED CNC LATHE
FLAT-BED CNC LATHE
FLAT-BED CNC LATHE
Length ranges summarize separate machine-length options. Open a model to review its full configurations.
MODEL COMPARISON
Compare CK series CNC lathe machine models by key machining capacities and configurations. Review workpiece size, spindle bore, load capacity, and motor power to support machine selection for your production requirements.
| Model / Configuration | Swing Over Bedmm | Workpiece Length Optionsmm | Bed Widthmm | Max. Workpiece Loadt | Spindle Boremm | Motor PowerkW | Full Details |
|---|---|---|---|---|---|---|---|
| CK6150 | 500 | 1,000–3,000 | 400 | 1 | 82 | 7.5 | |
| CK6163 | 630 | 1,000–4,000 | 550 | 3 | 105 | 11 | |

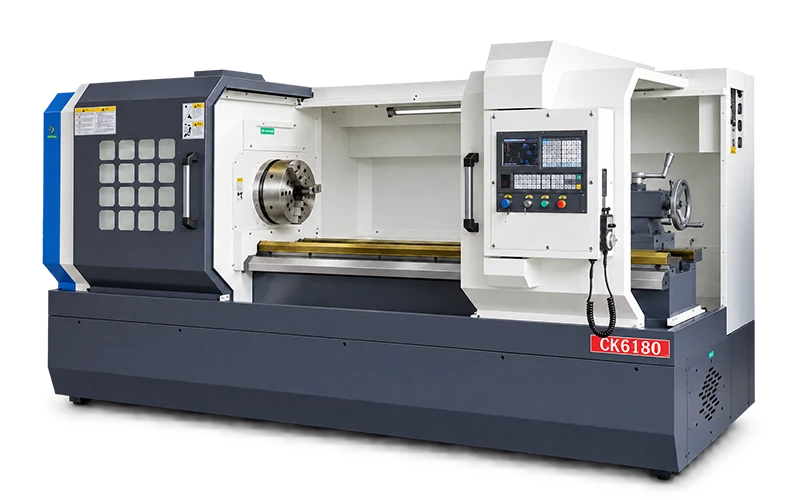

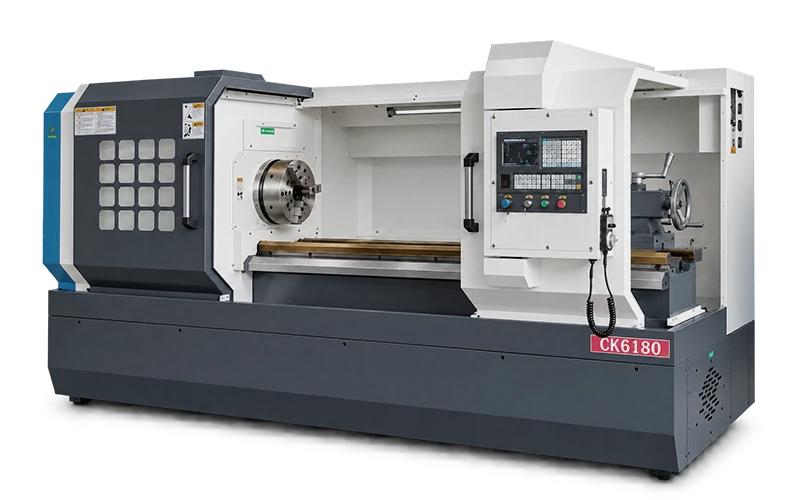

| CK6180550 mm bed width | 800 | 1,000–4,000 | 550 | 3 | 105 | 11 | |
| CK6180600/650 mm bed width | 800 | 1,500–10,000 | 600/650 | 4 | 105 | 15 | |

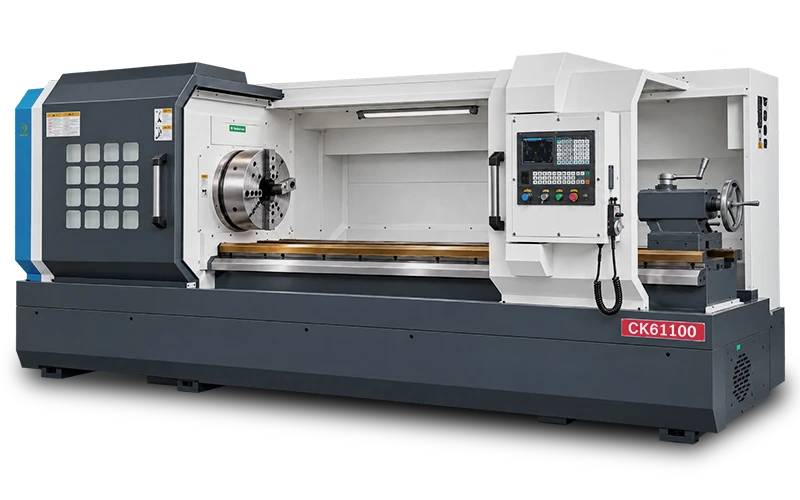

| CK61100600/650 mm bed width | 1,000 | 1,500–10,000 | 600/650 | 4 | 105 | 15 | |
| CK61100755 mm bed width | 1,000 | 1,500–10,000 | 755 | 6 | 140 | 22 | |
| CK61125600/650 mm bed width | 1,250 | 1,500–10,000 | 600/650 | 4 | 105 | 15 | |
| CK61125755 mm bed width | 1,250 | 1,500–10,000 | 755 | 6 | 140 | 22 | |

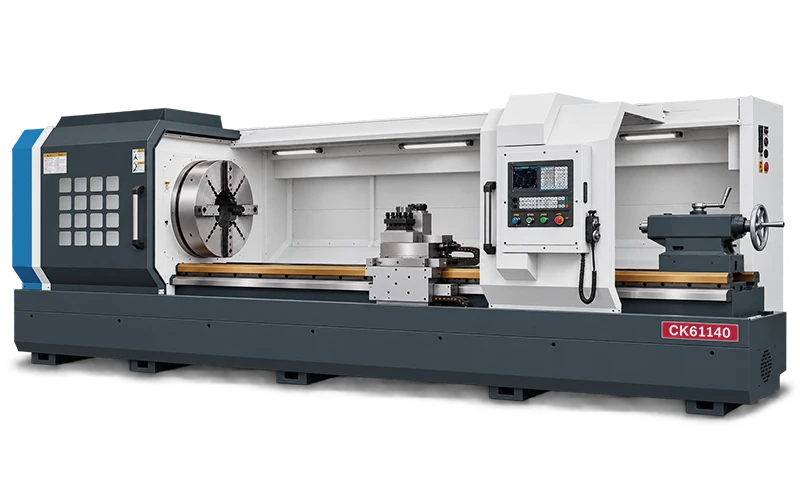

| CK61140 | 1,400 | 1,500–10,000 | 755 | 6 | 140 | 22 | |
| CK61160 | 1,600 | 1,500–10,000 | 755 | 6 | 140 | 22 | |
| CK61125L | 1,300 | 3,000–10,000 | — | 10 | 100 | 30 | |
| CK61140L | 1,500 | 3,000–10,000 | — | 10 | 100 | 30 | |
| CK61160L | 1,700 | 3,000–10,000 | — | 10 | 100 | 30 | |
| CK61180L | 1,900 | 3,000–10,000 | — | 10 | 100 | 37 | |
| CK61200L | 2,100 | 3,000–10,000 | — | 10 | 100 | 37 |
Reading the specifications: length ranges describe separate machine options. Swing over bed is a clearance dimension, and spindle bore is not the same as bar capacity. Confirm the complete machine configuration in your quotation.
MACHINE DETAILS
Explore the bed, workholding, tooling and support arrangements. Component specifications and available options vary by model.
Horizontal bed layout with model-specific bed widths and workpiece load capacities. Compare the bed specification alongside the required machine length.
Bed width & load capacity
Match the chuck arrangement to the workpiece diameter, weight and clamping requirements. Spindle bore and chuck specifications are confirmed for each model.
Workholding configuration
Review the tool post arrangement for your machining sequence. Tooling specifications and any optional equipment are defined in the quotation.
Tooling arrangement
Consider workpiece length, weight and support requirements when specifying the tailstock. Confirm its configuration with the selected machine size.
Workpiece supportCNC CONTROL & CONFIGURATION
Tell us your preferred CNC control and machine equipment. Controller availability, functions and included accessories are confirmed for the selected model.
Select a preference to include it in your quotation request.
ABOUT HAISEN
HAISEN combines dedicated lathe production workshops with an experienced engineering team. Our manufacturing facilities and technical resources support the design and production of CK series flat-bed CNC lathes across a range of machine sizes and configurations.
Supplying equipment to more than 80 countries and working with over 1,000 enterprises has given us broad experience in international machine tool markets. This experience informs ongoing product development and improvements to our CNC lathe designs.
BUYING INFORMATION
Key information for comparing machine specifications and preparing your enquiry.
Start with the workpiece diameter, overall length, weight, and required machining operations. Then compare the machining envelope, spindle bore, workholding, and tooling configuration. A drawing or dimensional sketch helps confirm the relevant machine specifications.
Swing over bed describes the maximum diameter that can rotate above the bed. It does not by itself define the full machining capacity. Actual turning diameter and length also depend on cross-slide clearance, tooling, and workholding.
Configuration options depend on the model. Specify your preferred controller, workholding, tooling arrangement, and tailstock requirements so their availability and compatibility can be confirmed. Standard and optional equipment should be stated in the quotation.
Length options vary by model and are separate machine specifications. The comparison table summarizes the listed choices; open a model to see its individual lengths. Include both the overall workpiece length and the required turning length when requesting a quotation.
Pricing depends on the model, length specification, controller, configuration, order quantity, and delivery terms. The delivery schedule is confirmed against the final machine specification and production arrangements. Request a quotation for the configuration you need.
Send your preferred model or a workpiece drawing with dimensions, material, weight, machining operations, and accuracy requirements. Include the quantity, destination, and any controller or configuration preferences. A dimensional sketch is useful if a drawing is unavailable.
